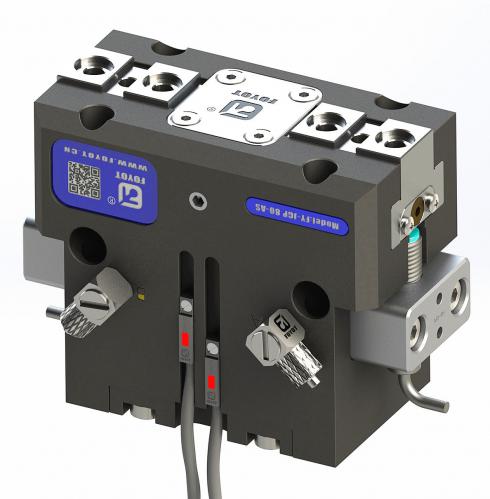

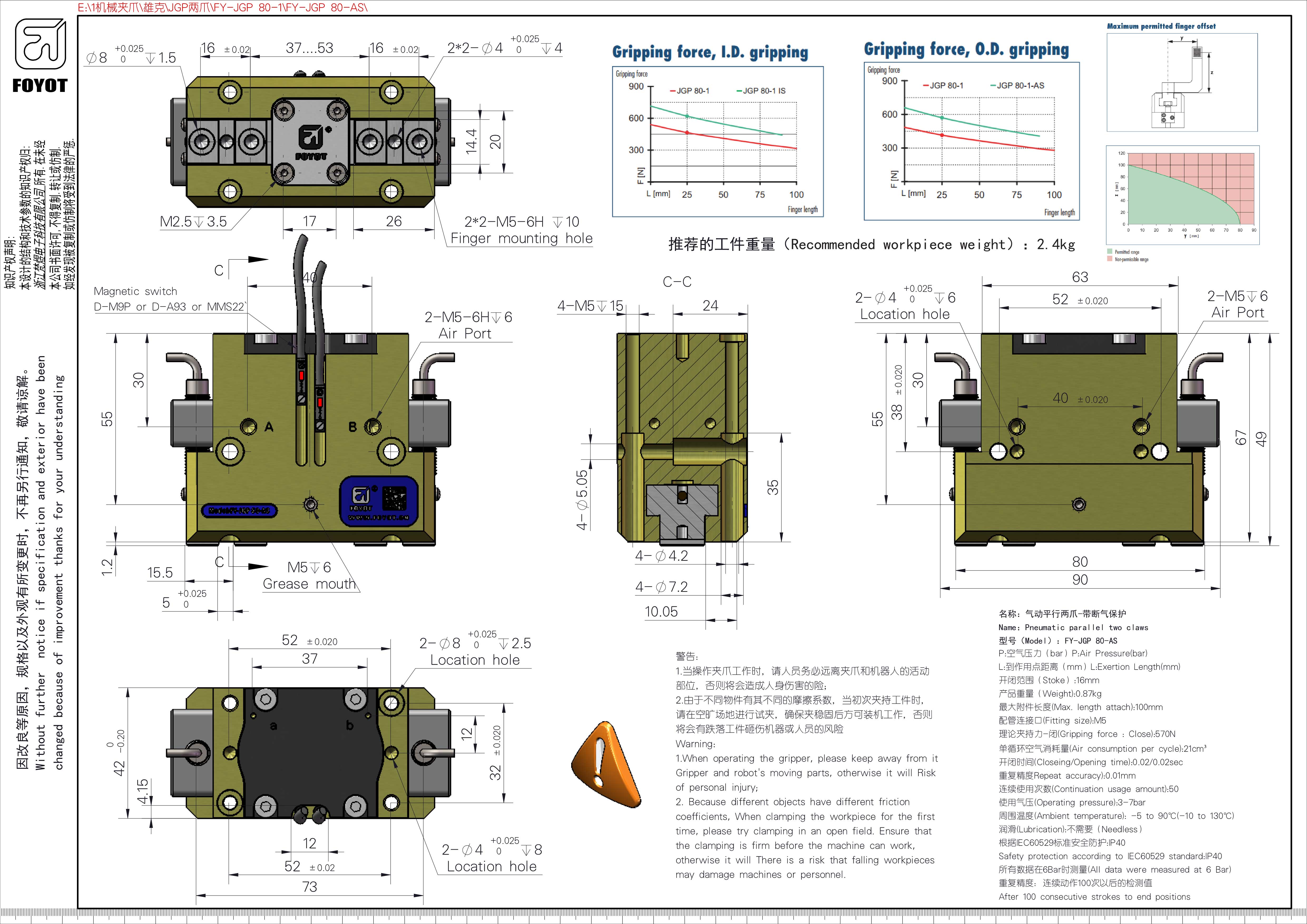

FY-JGP 80-AS

名称：气动平行两爪-带断气保护

Name:Pneumatic paral lel two claws

型号(Mode I):FY-JGP80-AS

P:空气压力(bar)P:Air Pressure(bar)

L:到作用点距离(mm)L:Exertion Length(mm)

开闭范围(Stoke)）：16mm

产品重量(Weight)):0.87kg

最大附件长度（Max.length attach):100mm

配管连接☐(Fitting size):M5

理论夹持力-闭(Gripping force:Close):570N

单循环空气消耗量(Air consumption per cycle):21cm³

开闭时间（Closeing/.Opening time):0.02/0.02sec

重复精度Repeat accuracy:0.01mm

连续使用次数(Continuation usage amount):50

使用气压(Operating pressure):3-7bar

周围温度(Ambient temperature:-5to90℃(-10to130℃)

润滑(Lubrication:不需要（Needless)

根据IEC60529标准安全防护：IP40

Safety protection according to IEC60529 standard:IP40

所有数据在6Bar时测量(All data were measured at6Bar)

重复精度：连续动作100次以后的检测值

After 100 consecutive strokes to end positions
