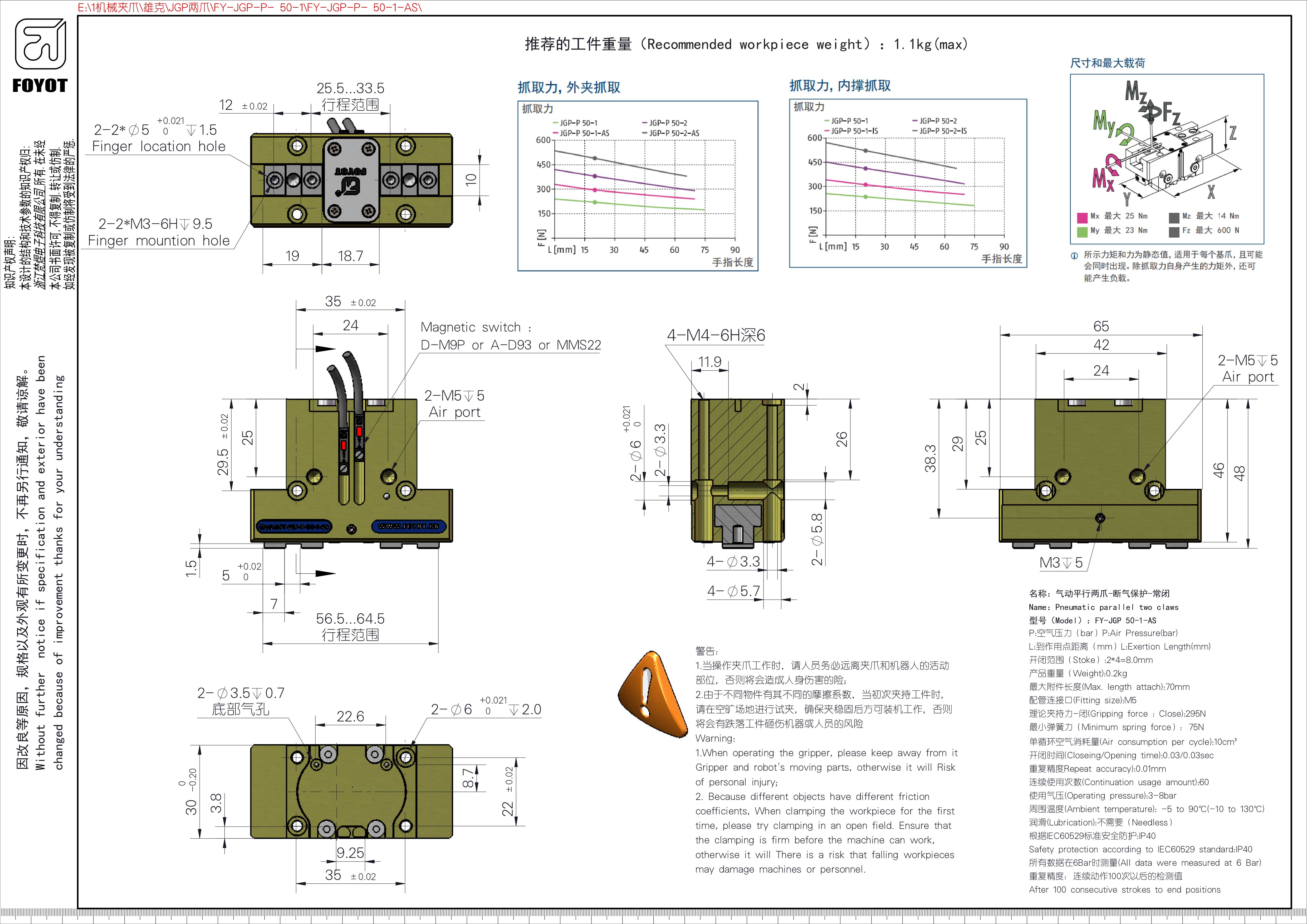

FY-JGP-P- 50-1-AS

名称：气动平行两爪-断气保护-常闭

Name:Pneumatic paral lel two claws

型号(ModeI):FY-JGP50-1-AS

P:空气压力(bar)P:Air Pressure(bar)

L:到作用点距离(mm)L:Exertion Length(mm)

开闭范围(Stoke):2*4=8.0mm

产品重量(Weight):0.2kg

最大附件长度（Max.length attach).:70mm

配管连接口（Fitting size):M5

理论夹持力-闭(Gripping force:Close):295N

最小弹簧力(Minimum spring force):75N

单循环空气消耗量(Air consumption per cycle):10cm³

开闭时间(Closeing/Opening time):0.03/0.03sec

重复精度(Repeat accuracy):0.01mm

连续使用次数(Continuation usage amount):60

使用气压(Operating pressure):3-8bar

周围温度(Ambient temperature):-5to90℃(-10to130℃)

润滑(Lubrication):不需要(Needless)

根据EC60529标准安全防护：IP40

Safety protection according to IEC60529 standard:IP40

所有数据在6Bar时测量(All data were measured at6Bar)

重复精度：连续动作100次以后的检测值

After 100 consecutive strokes to end positions
