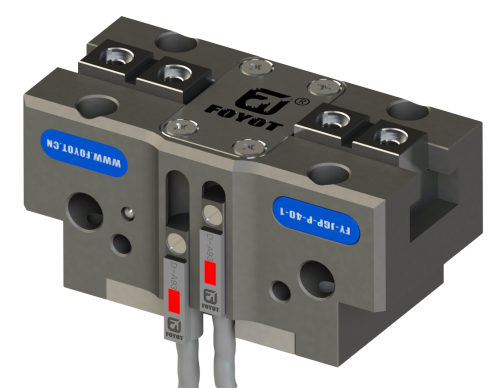

FY-JGP-P-40-1

名称：气动平行两爪

Name:Pneumatic paral lel two claws

型号(ModeI):FY-JGP40-1

P:空气压力(bar)P:Air Pressure(bar)

L:到作用点距离(mm)L:Exertion Length(mm)

开闭范围(Stoke)：2*2.5=5.0mm

产品重量(Weight):0.083kg

最大附件长度(Max.length attach):60mm

配管连接口（Fitting size):M3

理论夹持力-开(Gripping force:Open):180N

理论夹持力-闭(Gripping force:Close):200N

单循环空气消耗量（Air consumption per cycle:4cm³

开闭时间(Closeing/Opening time):0.01/0.01sec

重复精度(Repeat accuracy):0.01mm

连续使用次数(Continuation usage amount):60

使用气压(Operating pressure):3-8bar

周围温度(Ambient temperature:-5to90℃(-10to130℃)

润滑(Lubrication).:不需要(Needless)

根据EC60529标准安全防护：P40

Safety protection according to IEC60529 standard:IP40

所有数据在6Bar时测量(All data were measured at6Bar)

重复精度：连续动作100次以后的检测值

After 100 consecutive strokes to end positions
