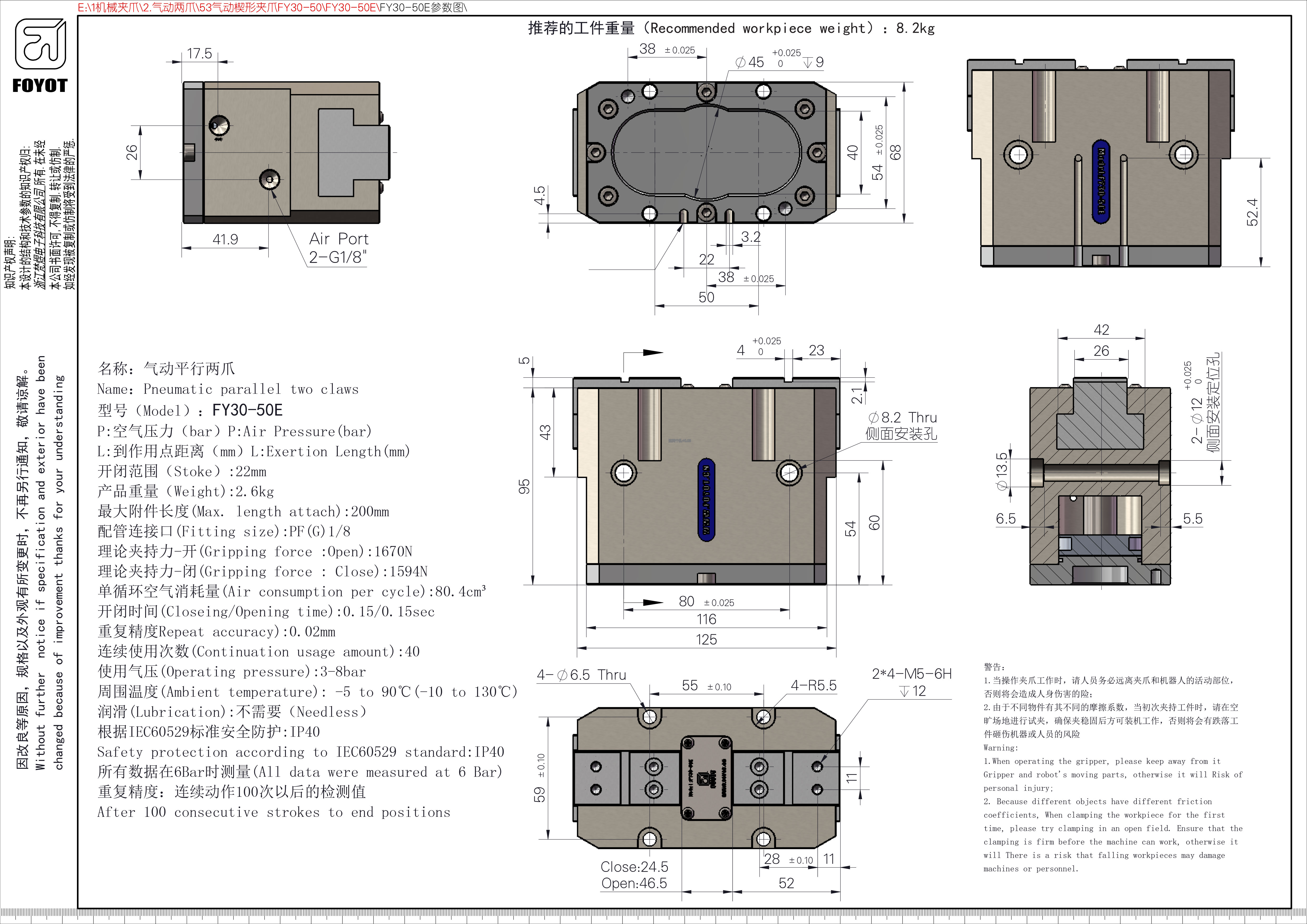

名称：气动平行两爪
Name:Pneumatic parallel two claws
型号(ModeI):FY30-50E
P:空气压力(bar)P:Air Pressure(bar)
L:到作用点距离(mm)L:Exertion Length(mm)
开闭范围(Stoke):22mm
产品重量(Weight):2.6kg
最大附件长度(Max.length attach),:200mm
配管连接口(Fitting size):PF(G)1/8"
理论夹持力-开(Gripping force:Open):1670N
理论夹持力-闭(Gripping force:Close):1594N
单循环空气消耗量(Air consumption per cycle):80.4cm3
开闭时间(Closeing,/Opening time):0.15/0.15sec
重复精度(Repeat accuracy):0.02mm
连续使用次数(Continuation usage amount):40
使用气压(Operating pressure):3-8bar
周围温度(Ambient temperature):-5to90℃(-10to130℃)
润滑(Lubrication):不需要(Needless)
根据IEC60529标准安全防护：IP40
Safety protection according to IEC60529 standard:IP40
所有数据在6Bar时测量(All data were measured at6Bar)
重复精度：连续动作100次以后的检测值
After 100 consecutive strokes to end positions
