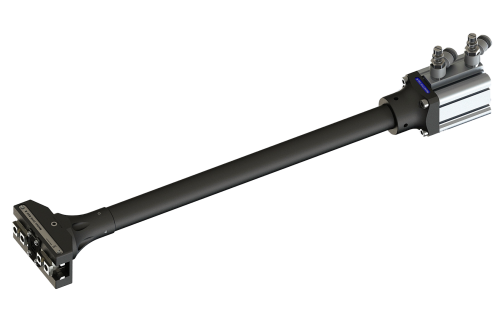

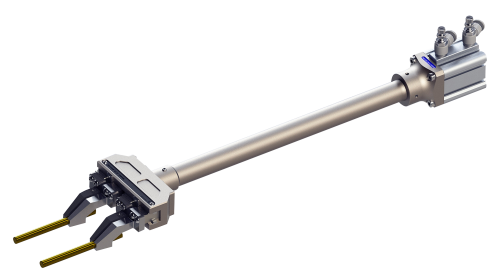

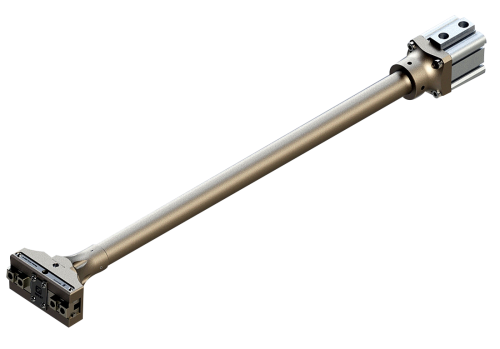

名称：导轨款耐高温锻造平行夹爪-D32
Name:Pneumatic paral lel three claws
型号(Model):FY13-D32-DU
P:空气压力(bar)P:Air Pressure(bar)
L:到作用点距离(mm)L:Exertion Length(mm):滑块端部
开闭范围(Stoke):10mm
产品重量(Weight):1.55kg(长491mm时)
最大附件长度(Max.length attach):60mm
配管连接口(Fitting size):G1/8“
理论夹持力-开(Gripping force:Open):459NW2=229.5N
理论夹持力-闭(Gripping force:Close):43oN/2-215N
开闭时间(Closeing,/Opening time):0.02/0.02sec
重复精度(Repeat accuracy):0.02mm
连续使用次数(Continuation usage amount):60
使用气压(Operating pressure):3-8bar
润滑(Lubrication):不需要(Needless)
根据IEC60529标准安全防护：IP64
所有数据在7Bar时测量（All datawere measured at 6 Bar)
重复精度：连续动作100次以后的检测值
After 100 consecutive strokes to end positions
