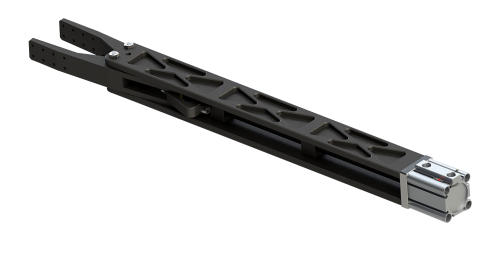

名称：气动耐高温锻造两爪
Name:Pneumatic paral lel two claws
型号(ModeI):FY12H-D32X600
P:空气压力(bar)P:Air Pressure(bar)
开闭范围(Stoke):-4度+7度
产品重量(Weight:)3.65kg
最大附件长度(Max.length attach):60mm
配管连接口(Fitting size):G1/8“
理论夹持力-开(Gripping force:Open):804N
理论夹持力-闭(Gripping force:Close):934.6N
气缸的效率(Cylinder efficiency):85%
单循环空气消耗量(Air consumption per cycle):19cm3
开闭时间(Closeing/Opening time):0.02/0.02sec
重复精度Repeat accuracy.:0.02mm
连续使用次数(Continuation usage amount):60
使用气压（Operating pressure):3-8bar
周围温度(Ambient temperature):-5to90℃(-10to130℃)
润滑(Lubrication):不需要(Needless)
根据IEC60529标准安全防护：IP60
Safety protection according to IEC60529 standard:IP60
所有数据在6Bar时测量(All data were measured at6Bar)
重复精度：连续动作100次以后的检测值
After 100 consecutive strokes to end positions
