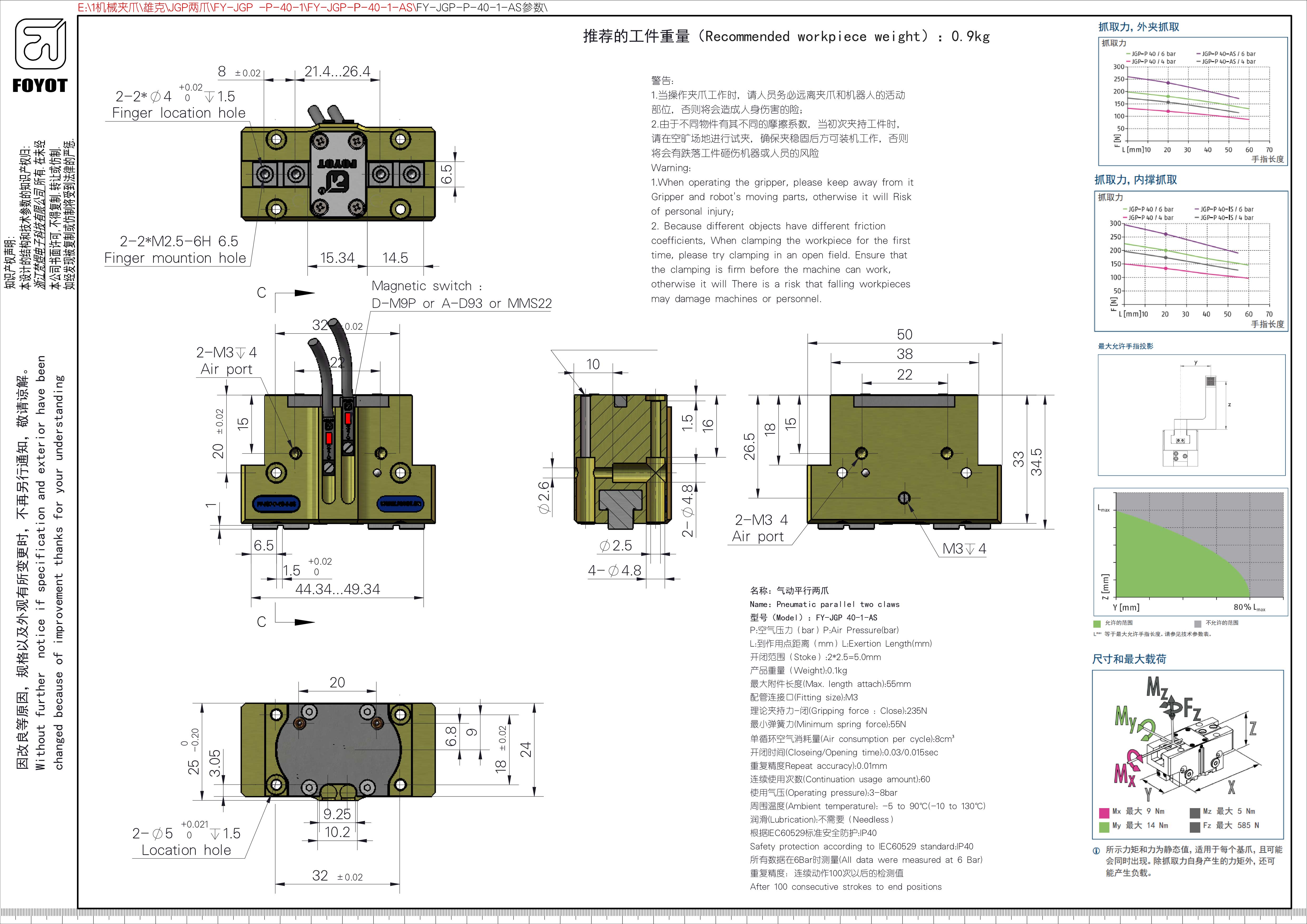

FY-JGP-P-40-1-AS

名称：气动平行两爪

Name:Pneumatic parallel two claws

型号(Model):FY-JGP40-1-AS

P:空气压力(bar)P:Air Pressure(bar)

L:到作用点距离(mm)L:Exertion Length(mm

开闭范围(Stoke):2*2.5=5.0mm

产品重量(Weight)):0.1kg

最大附件长度(Max.length attach):55mm

配管连接口(Fitting size):M3

理论夹持力-闭Gripping force:Close):235N

最小弹簧力(Minimum spring force):55N

单循环空气消耗量(Air consumption per cycle):8cm³

开闭时间（Closeing/Opening time:0.03/0.015sec

重复精度(Repeat accuracy):0.01mm

连续使用次数(Continuation usage amount):60

使用气压(Operating pressure.):3-8bar

周围温度(Ambient temperature.:-5to90℃(-10to130℃)

润滑(Lubrication):不需要(Needless)

根据EC60529标准安全防护：IP40

Safety protection according to IEC60529 standard:IP40

所有数据在6Bar时测量(All data were measured at6Bar)

重复精度：连续动作100次以后的检测值

After 100 consecutive strokes to end positions
