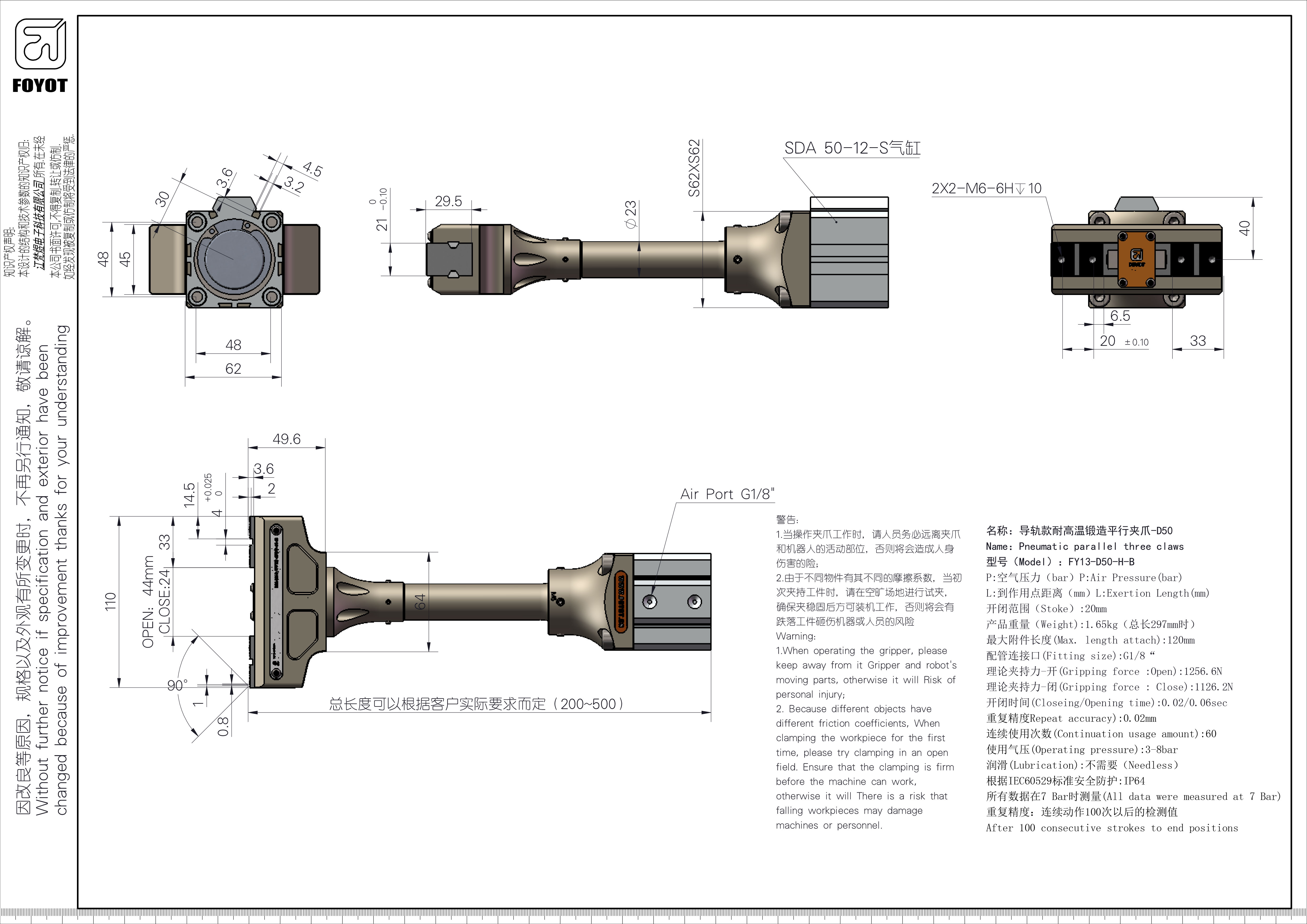

名称：导轨款耐高温锻造平行夹爪-D50
Name:Pneumatic parallel three claws
型号(ModeI):FY13-D50-H-B
P:空气压力(bar)P:Air Pressure(bar)
L:到作用点距离(mm)L:Exertion Length(mm)
开闭范围(Stoke):20mm
产品重量(Weight):1.65kg(总长297mm时)
最大附件长度(Max.length attach):120mm
配管连接口(Fitting size):(G)1/8“
理论夹持力-开(Gripping force:Open):1256.6N
理论夹持力-闭(Gripping force:Close):1126.2N
开闭时间(Closeing/Opening time):0.02/0.06sec
重复精度Repeat accuracy):0.02mm
连续使用次数(Continuation usage amount):60
使用气压(Operating pressure):3-8bar
润滑(Lubrication):不需要(Needless)
根据IEC60529标准安全防护：IP64
所有数据在7Bar时测量（All data were measured at 7 Bar)
重复精度：连续动作100次以后的检测值
After 100 consecutive strokes to end positions
