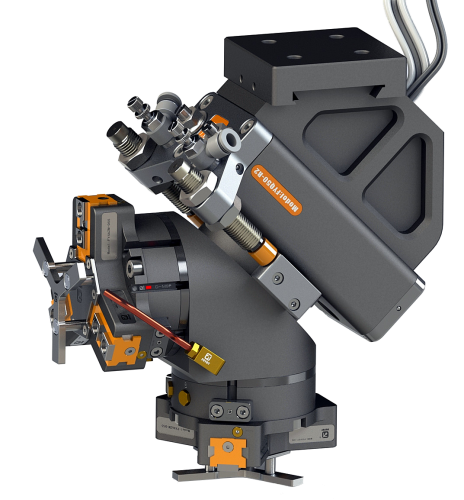

名称：气动平行三爪&20摆缸组合件
型号(ModeI):FY46ZM-D40&FYQ30-R2
开闭范围(Stoke):12mm
最大附件长度(Max.length attach):60mm
理论夹持力-开(Gripping force:Open):769N
理论夹持力-闭(Gripping force:Close):686.7N
开闭时间(Closeing/0 pening time):0.02/0.02sec
重复精度(Repeat accuracy):0.01mm
连续使用次数(Continuation usage amount):60
使用气压(Operating pressure):3-8bar
周围温度(Ambient temperature):-5to60℃(-10to130℃)
润滑(Lubrication):不需要(Needless)
根据IEC60529标准安全防护：IP64
Safety protection according to IEC60529 standard:IP64
所有数据在7Bar时测量(All data were measured at7Bar)
重复精度：连续动作100次以后的检测值
After 100 consecutive strokes to end positions
