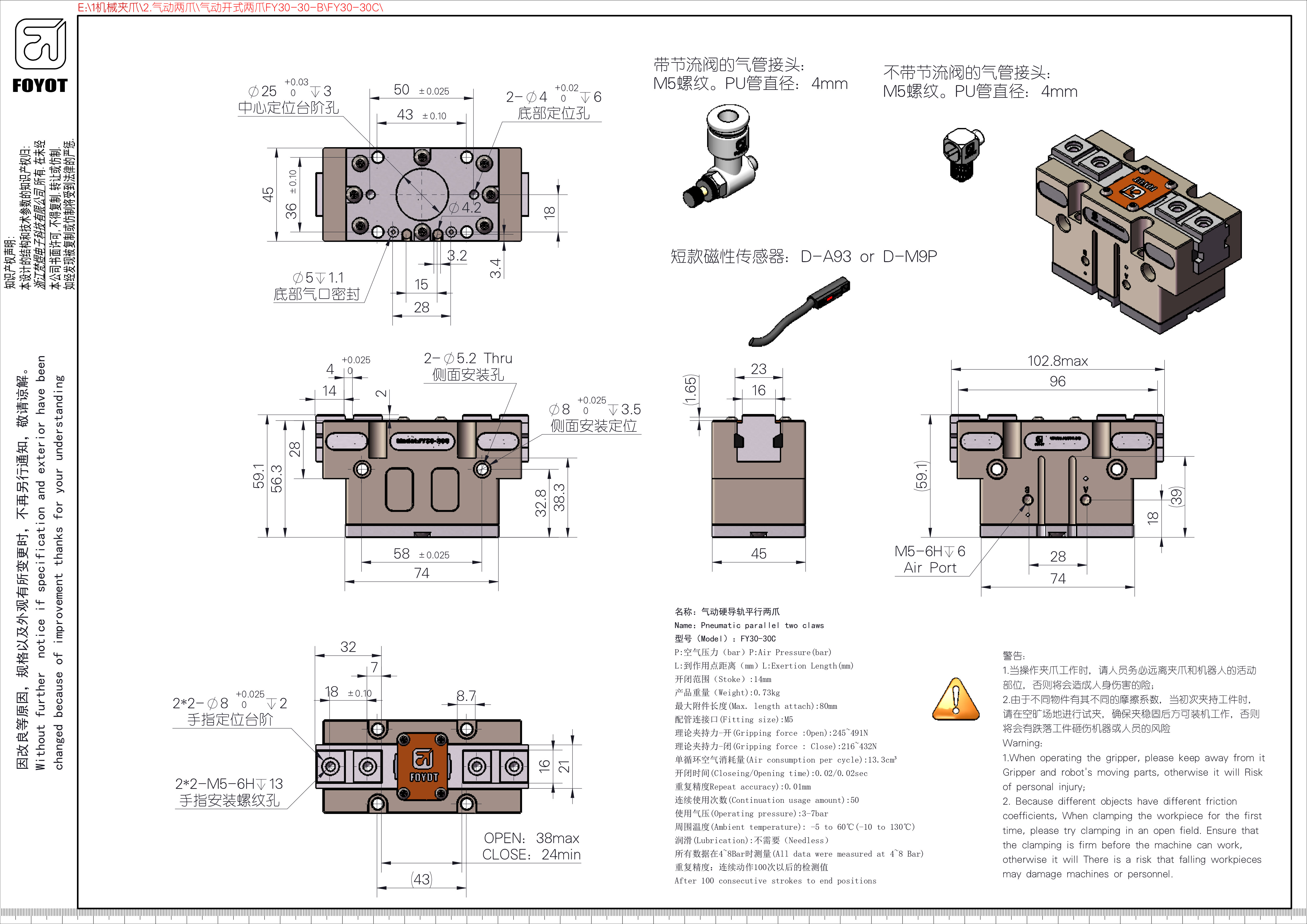

FY30-30C

名称：气动硬导轨平行两爪

Name:Pneumatic paral lel two claws

型号(ModeI):FY30-30℃

P:空气压力(bar)P:Air Pressure(bar)

L:到作用点距离(mm)L:Exertion Length(mm)

开闭范围(Stoke):14mm

产品重量(Weight):0.73kg

最大附件长度(Max.length attach):80mm

配管连接口(Fitting size):M5

理论夹持力-开(Gripping force:Open):245491N

理论夹持力-闭(Gripping force:Close):216432N

单循环空气消耗量(Air consumption per cycle):13.3cm³

开闭时间(Closeing/Opening time):0.02/0.02sec

重复精度(Repeat accuracy):0.01mm

连续使用次数(Continuation usage amount):50

使用气压(Operating pressure):3-Tbar

周围温度(Ambient temperature):-5to60℃(-10to130℃)

润滑(Lubrication):不需要(Needless)

所有数据在48Bar时测量(All data were measured at 48 Bar)

重复精度：连续动作100次以后的检测值

After 100 consecutive strokes to end positions
