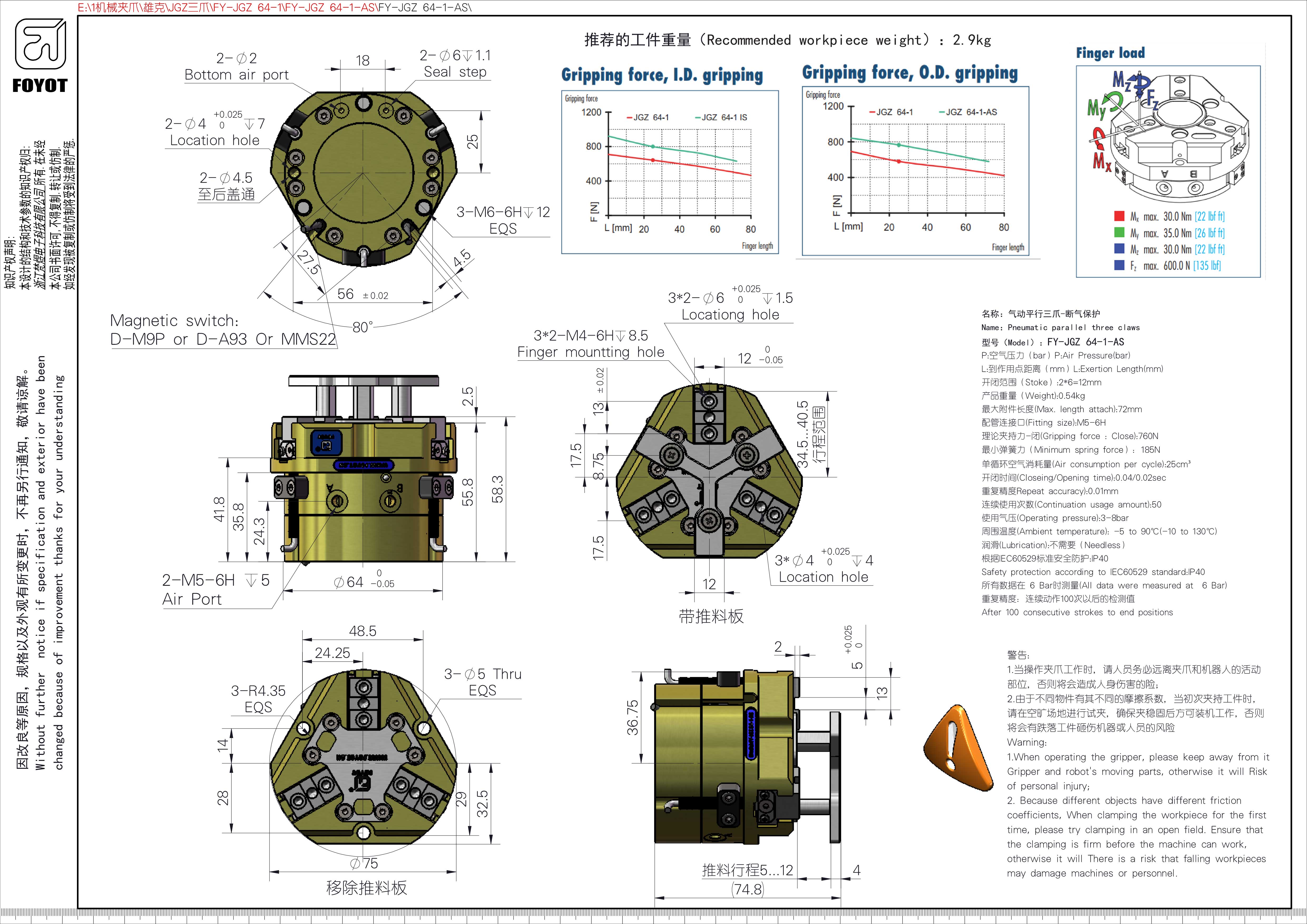

FY-JGZ 64-1-AS

名称：气动平行三爪-断气保护

Name:Pneumatic parallel three claws

型号(Mode1):FY-JGZ64-1-AS

P:空气压力(bar)P:Air Pressure(bar)

L:到作用点距离(mm)L:Exertion Length(mm)

开闭范围(Stoke):2*6=12mm

产品重量(Weight):0.54kg

最大附件长度（Max.length attach:72mm

配管连接口（Fitting size):M5-6H

理论夹持力-闭（Gripping force:Close):760N

最小弹簧力(Minimum spring force)：185N

单循环空气消耗量(Air consumption per cycle):25cm³

开闭时i间(Closeing/.Opening time):0.04/0.02sec

重复精度(Repeat accuracy):0.01mm

连续使用次数(Continuation usage amount):50

使用气压(Operating pressure):3-8bar

周围温度(Ambient temperature):-5to90℃(-10to130℃)

润滑(Lubrication:不需要（Needless)

根据1EC60529标准安全防护：IP40

Safety protection according to IEC60529 standard:IP40

所有数据在6Bar时测量(All data were measured at6Bar)

重复精度：连续动作100次以后的检测值

After 100 consecutive strokes to end positions
