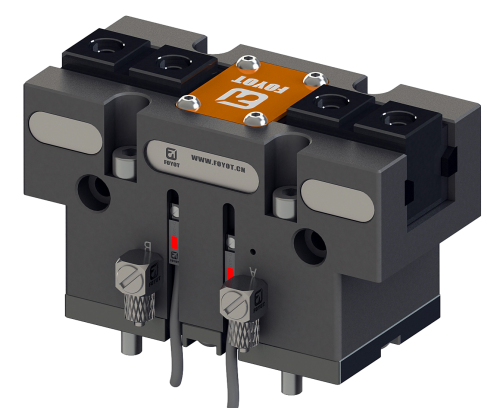

名称：气动平行三爪六轴机器人上下料
型号(Mode I):RBT-FY46ZM-D40
P:空气压力(bar)P:Air Pressure(bar)
L:到作用点距离(mm)L:Exertion Length(mm)
开闭范围(Stoke):12mm
产品重量(Weight):2.5~3.0kg
最大附件长度(Max.length attach):60mm
配管连接口(Fitting size):M5-6H
理论夹持力-开(Gripping force:Open):769N
理论夹持力-闭(Gripping force:Close):686.7N
单循环空气消耗量(Air consumption per cycle):19.9cm3
开闭时间(Closeing/Opening time):0.02/0.02sec
重复精度(Repeat accuracy):0.01mm
连续使用次数(Continuation usage amount):60
使用气压(Operating pressure):3-8bar
周围温度(Ambient temperature):-5to60℃(-10to130℃)
润滑(Lubrication):不需要(Needless)
根据IEC60529标准安全防护：IP64
Safety protection according to IEC60529 standard:IP64
所有数据在7Bar时测量（All data were measured at 7 Bar)
重复精度：连续动作100次以后的检测值
After 100 consecutive strokes to end positions
