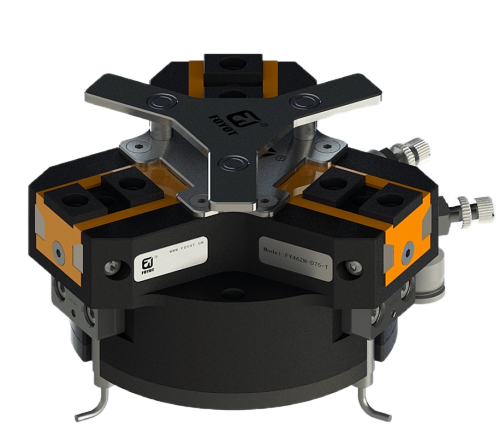

名称：气动平行三爪
Name:Pneumatic parallel three claws
型号(Model):FY46ZM-D200
P:空气压力(bar)P:Air Pressure(bar)
L:到作用点距离(mm)L:Exertion Length(mm)
开闭范围(Stoke)：60mm
产品重量(Weight):20.05kg
最大附件长度(Max.length attach):355mm
配管连接口(Fitting size:PF(G)1/4"
理论夹持力-开（Gripping force:Open):12540N
理论夹持力-闭Gripping force:Close):12130N
开闭时间（Closeing/Opening time):0.12/0.25sec
重复精度Repeat accuracy):0.05mm
连续使用次数(Continuation usage amount):20
使用气压(Operating pressure):3-8bar
周围温度(Ambient temperaturel):-5to60℃(-10to130℃)
润滑(Lubrication):不需要(Needless)
根据IEC60529标准安全防护：IP64
Safety protection according to IEC60529 standard:IP64
所有数据在6Bar时测量(All data were measured at6Bar)
重复精度：连续动作100次以后的检测值
After 100 consecutive strokes to end positions
