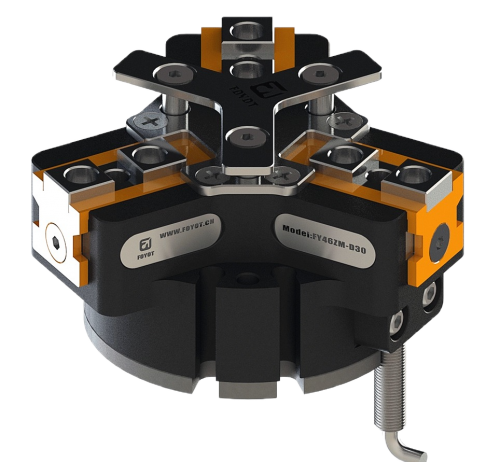

名称：气动平行三爪
Name:Pneumatic paral lel three claws
型号(ModeI):FY46ZM-D125
P:空气压力(bar)P:Air Pressure(bar)
L:到作用点距离(mm)L:Exertion Length(mm)
开闭范围(Stoke):32mm
产品重量(Weight):5.5kg
最大附件长度（Max.length attach):160mm
配管连接口(Fitting size):PF(G)1/8"
理论夹持力-开（Gripping force:Open):4600.9N
理论夹持力-闭(Gripping force:Close):4326.2N
单循环空气消耗量(Air consumption per cycle):466.6cm3
开闭时间(Closeing/Opening time):0.50/0.50sec
重复精度(Repeat accuracy):0.05mm
连续使用次数(Continuation usage amount):30
使用气压(Operating pressure):3-8bar
周围温度(Ambient temperature):-5to60℃(-10to130℃)
润滑(Lubrication):不需要(Needless)
根据IEC60529标准安全防护：IP64
Safety protection according to IEC60529 standard:IP64
所有数据在7Bar时测量(All data were measured at7Bar)
重复精度：连续动作100次以后的检测值
After 100 consecutive strokes to end positions
