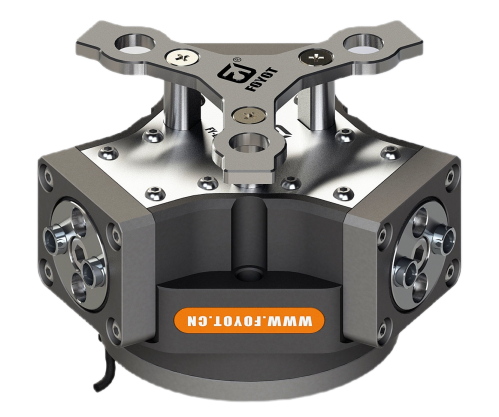

名称：气动全密封平行三爪
Name:Pneumatic paral lel fulI Seal three claws
型号(Mode I):FY-DPZ-pIus100-1-As
FY-DPZ-plus 100-1
P:空气压力(bar)P:Air Pressure(bar)
L:到作用点距离(mm)L:Exertion Length(mm)
开闭范围(Stoke):21mm
产品重量(Weight):(-AS:2.3kg)（2.1kg)
最大附件长度(Max.length attach):80mm
配管连接口(Fitting size):(G)1/8"
理论夹持力-开(Gripping force:Open):1920N-As:2520N)
理论夹持力-闭(Gripping force:Close):1620N(-As:2265N)
开闭时间(Closeing/Opening time):0.13/0.13sec
重复精度Repeat accuracy.:0.02mm
连续使用次数(Continuation usage amount):60
使用气压(Operating pressure):3-8bar
周围温度(Ambient temperature):-5to60℃(-10to130℃)
润滑(Lubrication):不需要(Needless)
根据IEC60529标准安全防护：IP67
Safety protection according to IEC60529 standard:IP67
所有数据在7Bar时测量(All data were measured at7Bar)
重复精度：连续动作100次以后的检测值
After 100 consecutive strokes to end positions
