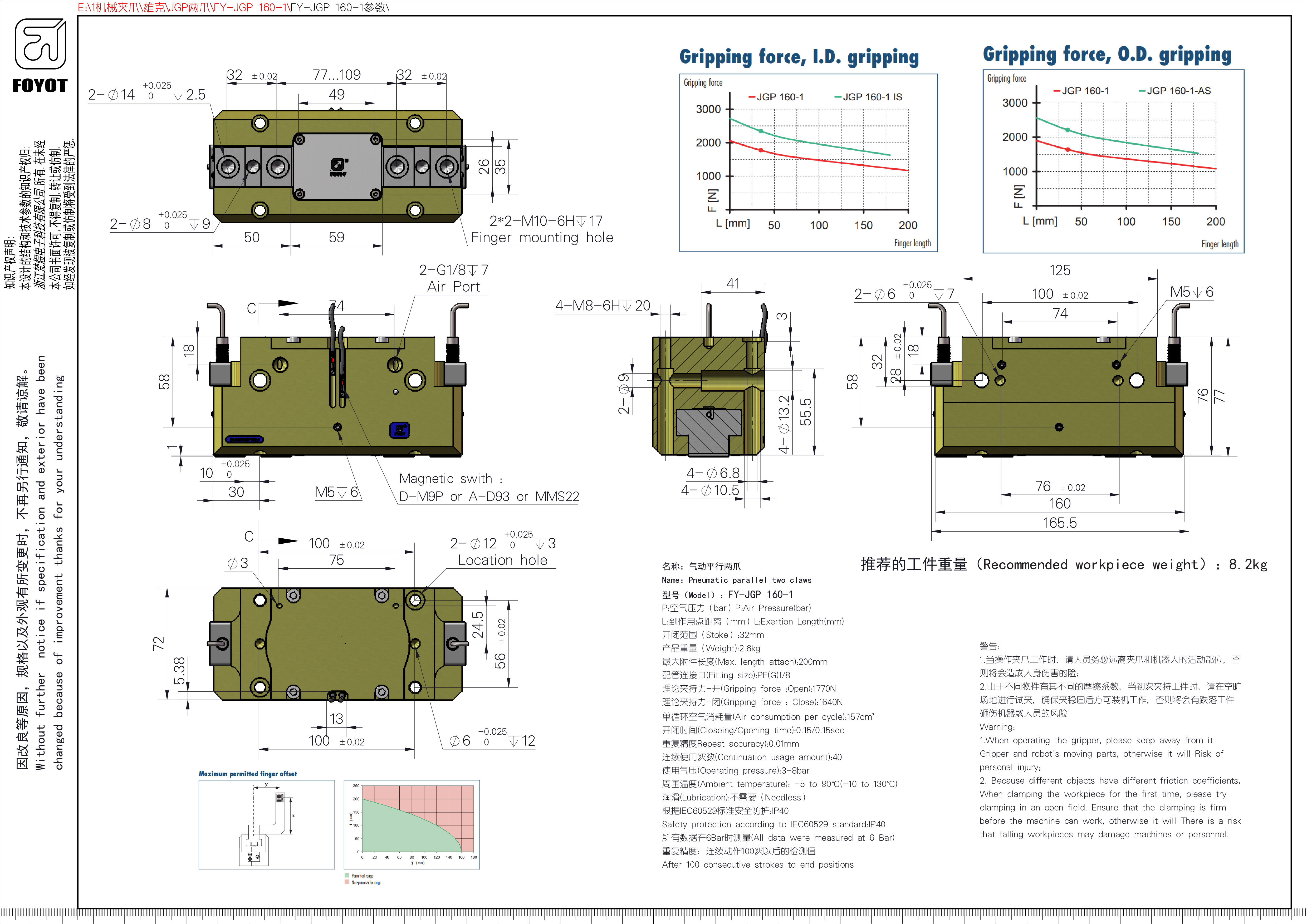

FY-JGP 160-1

名称：气动平行两爪

Name:Pneumatic parallel two claws

型号(ModeI):FY-JGP160-1

P:空气压力(bar)P:Air Pressure(bar)

L:到作用点距离(mm)L:Exertion Length(mm)

开闭范围(Stoke):32mm

产品重量(Weight):2.6kg

最大附件长度(Max.length attach):200mm

配管连接口(Fitting size):PF(G)1/8"

理论夹持力-开(Gripping force:Open)::1770N

理论夹持力-闭(Gripping force:Close):1640N

单循环空气消耗量（Air consumption per cyclel):157cm³

开闭时间(Closeing/Opening time):0.15/0.15sec

重复精度(Repeat accuracy).:0.01mm

连续使用次数(Continuation usage amount):40

使用气压（Operating pressure):3-8bar

周围温度(Ambient temperature):-5to90℃(-10to130℃)

润滑(Lubrication):不需要(Needless)

根据IEC60529标准安全防护：IP40

Safety protection according to IEC60529 standard:IP40

所有数据在6Bar时测量(All data were measured at6Bar)

重复精度：连续动作100次以后的检测值

After 100 consecutive strokes to end positions
